I am using Brazilian Rosewood for the handle and birch for the Celtic knot. I have to make four cut and glues to prepare the handle to be turned. I am using a 35 degree angle for the cuts utilizing a gig that I made for that purpose.
|
This is after the first cut and glue sequence. |
|
Another angle. There four clamps holding it tight. |
|
This is after I have cleaned up the two cut and glues. Ready for the third cut. |
|

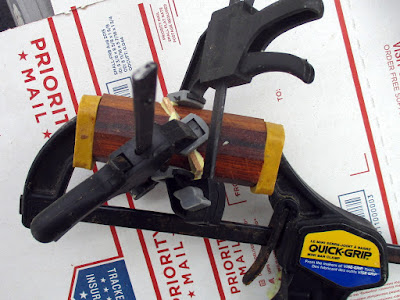

Clamped after the third cut and glue sequence. |
|
Cleaned up after the third cut and glue. |
|
After the fourth cut and before the gluing. |
|

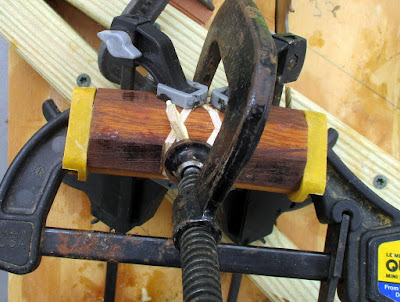

This is the final glue and clamp sequence. |
Now the handle will sit over night. I will turn it tomorrow.

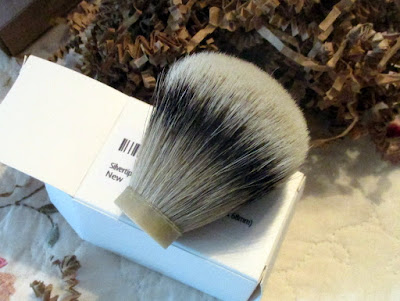

I have a silvertip badger on order. I have also ordered a gold cross that I will inlay on the bottom of the handle.
It's turning day. Here is what I got done. I think it turned out very well.
|
Ready to go. |
|
Starting to take shape. |
|

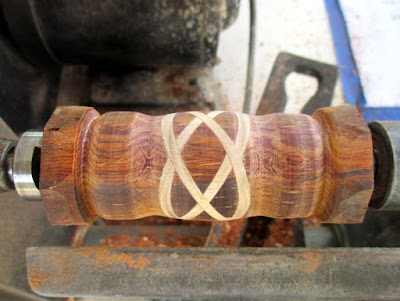

Almost done. |
|

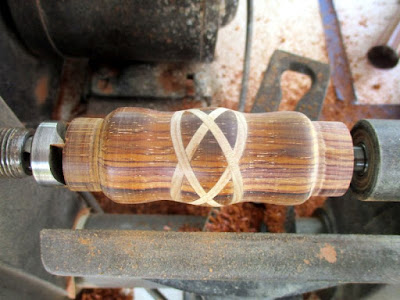

Fresh off the lathe. |
|

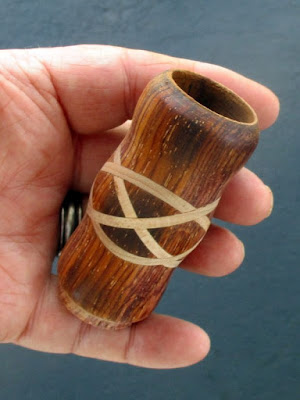

Hole for knot is created. |
|
Just for show. |
|
Ready for finishing. |
Now I am waiting on the knot and the concho to finish it off. I have started the hole for the concho, but I will wait on its arrival so I can determine the best depth to set it. In the picture below I put a quarter in the bottom where the concho will go.
Update: After one coat of polycrylic, I wanted to take some pictures in the sunlight so you can see the rich color of this brush. Now, I am wanting to make me one for myself.
Update: Wednesday, August 1.
The concho was delivered today. The knot is scheduled for a Thursday delivery. I got the concho installed this afternoon. Here is what it looks like now.

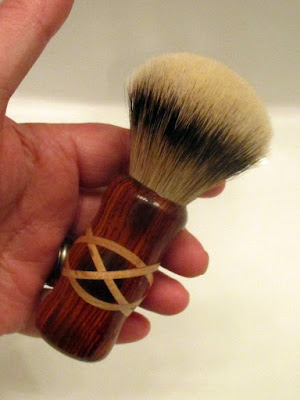

Update: August 2, it is finished.
|
The knot arrived this afternoon. |
|
I did a test dry fitting. It is a bit tall. |
I drilled the hole a bit deeper to give the knot a little more backbone.
Final loft is 52mm.
